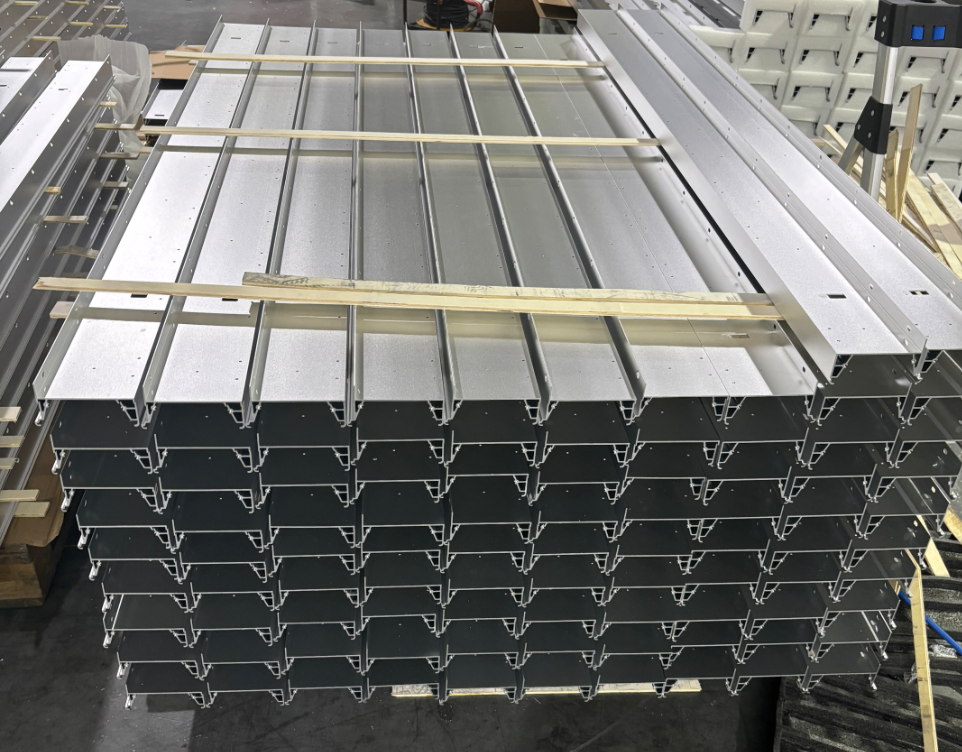

Aluminum curved profiles used for semiconductor factory

This customized industrial aluminum profile is professional structural and guiding component specially developed for semiconductor wafer fabrication workshops and chip packaging plants. Adopting standardized 6063-T5 magnesium-silicon aluminum alloy with ultra-stable internal texture, the product takes seamless splicing of straight rails and curved transition rails as core design, and serves as the basic frame and operation track for EFEM equipment, AMHS overhead travelling cranes and wafer automatic handling equipment in high-standard cleanrooms.

All straight rails and curved rails adopt unified high-precision extrusion benchmark and integrated positioning structure. The flatness, guide groove size and assembly tolerance of linear section and curved section keep fully consistent, realizing gap-free seamless docking and gentle natural transition during wafer handling equipment steering switching. Different from ordinary aluminum profiles prone to burrs, particle shedding and uneven joints, 6063-T5 material with strict impurity control owns excellent forming stability and low-outgassing property, effectively eliminating particle pollution, equipment jitter and positioning deviation during high-frequency reciprocating transportation of FOUP wafer boxes.

The optimized seamless splicing structure greatly improves the overall continuity and long-term stability of cleanroom track network and equipment frame. Under long-term 24-hour uninterrupted high-speed operation and continuous alternating load, the profile bears uniform stress, effectively restrains micro-deformation and local deflection, and keeps stable positioning accuracy of automated conveying equipment. Freely combined straight and curved rails break the layout limitation of single straight track, and can flexibly build annular, multi-branch complex logistics routes, perfectly matching flexible layout demands of front-end wafer process, etching, lithography and back-end packaging workshops.

With outstanding anti-particle performance, corrosion resistance and structural fatigue resistance, the 6063-T5 aluminum profile maintains fixed splicing clearance and smooth surface after long-time frequent straight-curved switching operation. After standardized clean anodizing treatment, it will not release pollutants, warp or loose connecting joints under long-term working conditions, reduce equipment failure rate and routine maintenance cost, and provide durable, contamination-free structural guarantee for long-term stable operation of semiconductor intelligent manufacturing system.
