Smart Logistics System :Precision Aluminum Profile Transport Solution

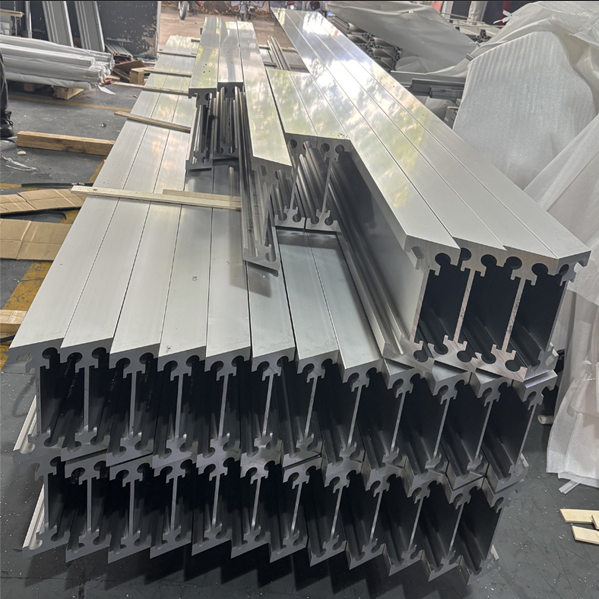

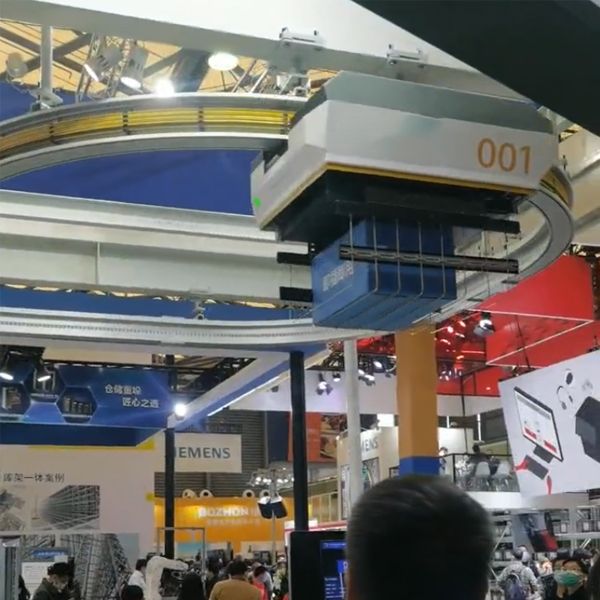

This customized aluminum guide rail is a dedicated load-bearing and guiding structural component tailored for Phoebus EMS overhead travelling crane intelligent overhead logistics system. Manufactured with high-performance 6005-T6 high-toughness aluminum alloy, the profile takes seamless splicing of straight tracks and curved tracks as the core design, and serves as the fundamental operating track for long-distance, multi-branch automatic material transportation of overhead shuttle vehicles.

The whole series of straight rails and curved rails adopt unified extrusion benchmark and integrated positioning structure. The track flatness, guide groove size and assembly tolerance of linear section and curved transition section keep fully consistent, which realizes gap-free seamless docking and smooth natural transition when the overhead shuttle switches between straight running and curved steering. Unlike conventional rails with inconsistent machining precision and uneven joint transition, stable mechanical toughness and ultra-precise forming accuracy of 6005-T6 alloy effectively eliminate jitter, walking jamming and positioning deviation during frequent high-speed switching operation of EMS overhead crane.

The seamless splicing design greatly enhances the overall continuity and operation stability of the whole logistics track network. Under full-load transportation and continuous high-speed operation, the track bears uniform dynamic load, effectively suppresses micro-deformation and local deflection, guarantees the long-term stable positioning accuracy of shuttle vehicles, and supports uninterrupted automatic material distribution on complex annular and multi-branch warehouse routes. The freely combined straight and curved rails break the layout limitation of single straight track, perfectly match the flexible networking and path expansion demands of Phoebus intelligent logistics system.

With excellent structural fatigue resistance, wear resistance and environmental corrosion resistance, the 6005-T6 aluminum guide rail can permanently maintain stable splicing clearance and smooth track surface after long-term high-frequency straight-curved switching operation. It will not bend, warp or loose splicing joints under long-term alternating load, reduce equipment operation failure rate and routine maintenance cost, and provide durable, stable and reliable track guarantee for long-term continuous operation of Phoebus EMS overhead travelling crane system.
