Precision Bending

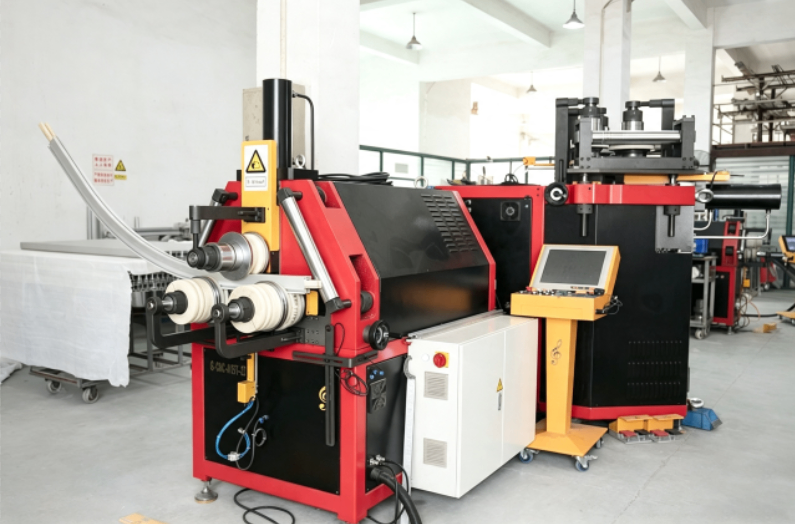

CNC Aluminum Profile Roll‑Bending Advantages & Tolerance

1. Bending Precision

   Arc tolerance: ±0.15‑0.3 mm per meter. Servo‑driven CNC positioning accuracy ≤±0.2 mm. Section‑deformation kept under 0.2 mm without collapse or scratch. High repeat‑accuracy for mass‑production.

2. Technical Strength

   Custom‑made polyurethane forming rollers prevent surface damage. We are experienced in 6005A‑T5,6061‑T6 and other hard‑grade aluminum‑alloy profiles for curved‑rail,AGV and warehouse‑logistics tracks.

   3.‑Custom multi‑radius curve,spiral bending and full circle forming are supported. Pre‑bending DFM analysis and stress‑relief treatment stop spring‑back after bending.

   4.One‑stop service including bending,FSW welding,cut‑to‑length,drilling,sand‑blasting and anodizing.
