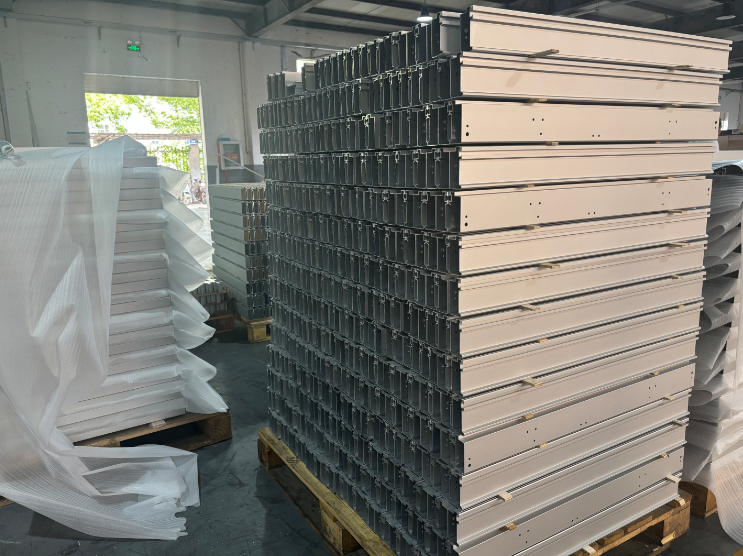

Aluminum Curved Profiles for Smart Logistics Systems

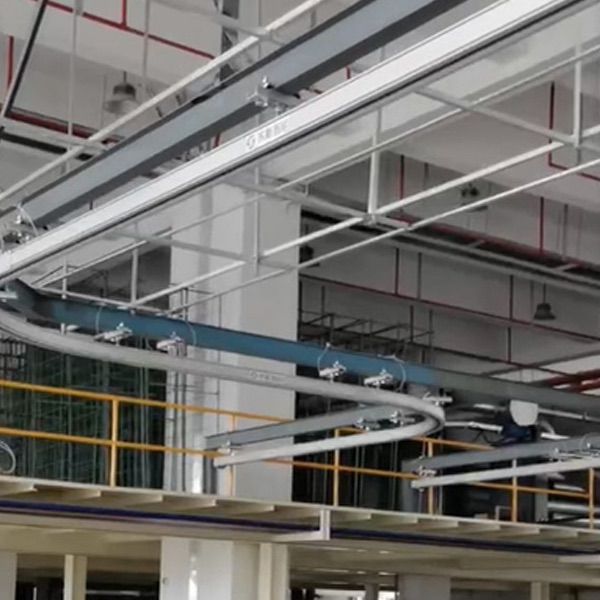

KunChuan Intelligent’s suspended single rail EMS overhead monorail conveyor system is a mature domestic automated transport solution, widely recognized as reliable alternative to Mirle OHT overhead hoist transfer system for semiconductor, intelligent logistics and new energy manufacturing industries. Our overhead monorail adopts high-strength customized aluminum alloy guide rails, supporting seamless docking of straight and curved rails with splicing gap controlled within 0.05mm, the maximum running speed reaches 160m/min, positioning accuracy up to ±5mm, maximum load up to 1000kg, meeting Class 10-1000 cleanroom standards same as Mirle AMHS products. Different from imported Mirle OHT which focuses on small-load semiconductor FOUP transport, KunChuan EMS suspended rail supports diversified loads from 30kg small parts to 3000kg pallets, compatible with warehouse, pharmaceutical, tobacco and battery production lines. With independent R&D scheduling control system, localized after-sales service and mass stable production capacity, we provide cost-effective, fast-delivery overhead monorail overall solutions for global manufacturing enterprises, realizing stable EQ-to-EQ direct conveying same as imported OHT system.
